Affinity Designer

CMYK Settings for Design & output

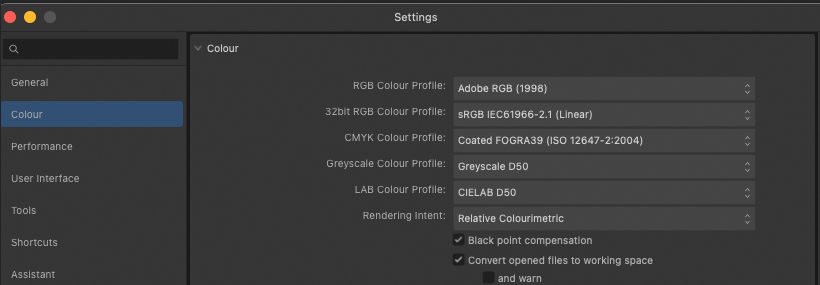

Application Colour Settings

From the Affinity app menu, select Settings & select colour from the left menu.

CMYK Colour Profile select   Coated FOGRA39 (ISO 12647-2:2004)

Rendering Intent: Relative Colourimetric

Check on:  Black point compensation

Check on:  Convert opened files to working space

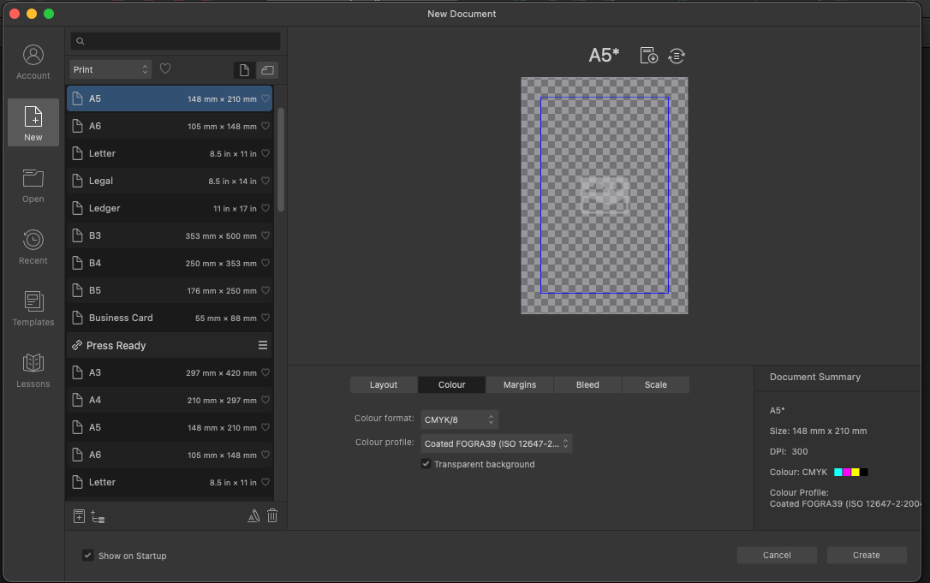

New Document Settings

Select file & new, select the document size from the left menu and click on the colour tab

Colour Format   CMYK/8

Colour Profile: Coated FOGRA39 (ISO 12647-2:2004)

Check on:  Transparent Background

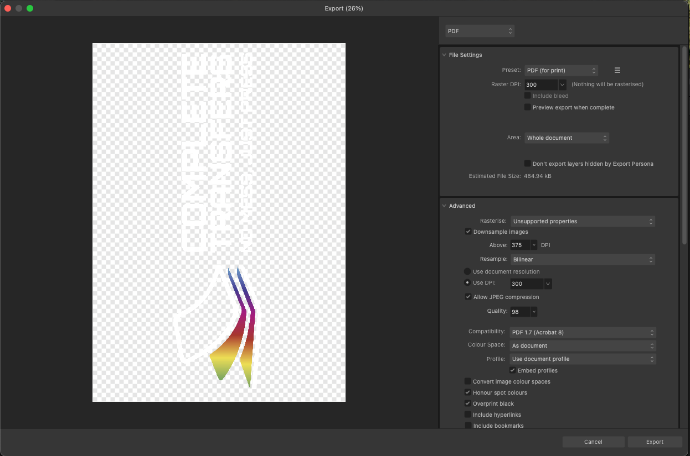

PDF Export Settings

Select File & Export, select the PDF from the dropdown menu

Preset:   PDF[for print]​

Export.
